Product Guide

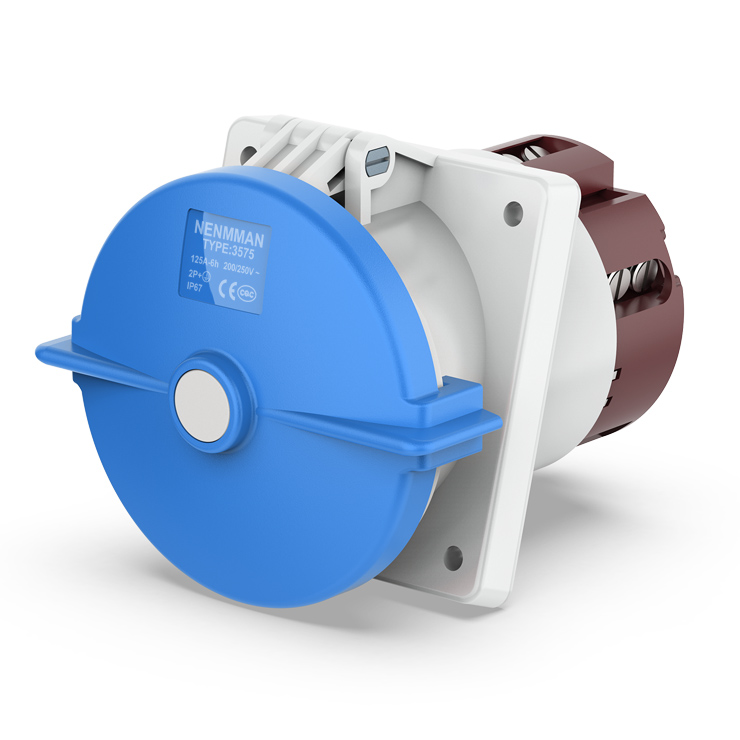

Panel Mounted Socket 125A/3P-3575 IP67 230V Oblique insertion

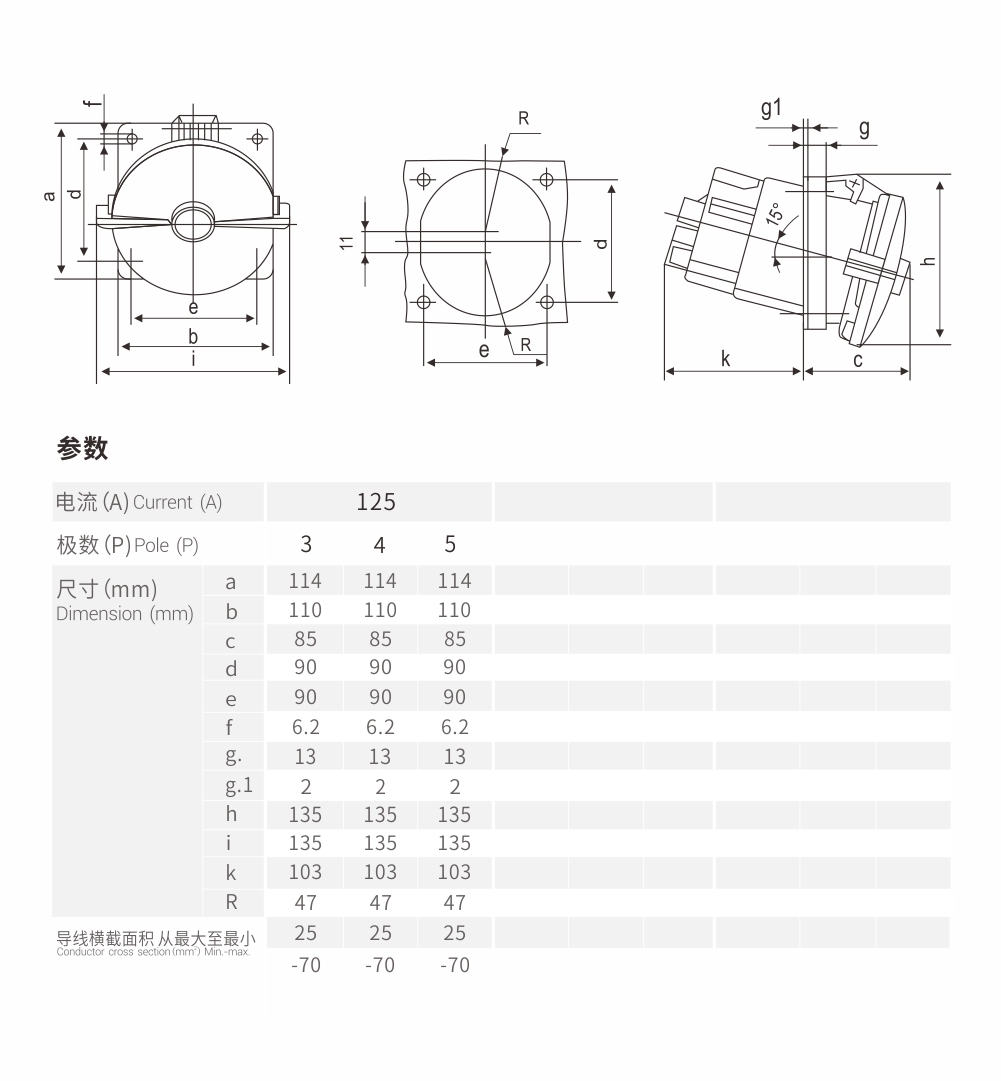

Product descriptionTechnical parametersTechnical drawingsDownload

Panoramic vr
  • Model：TYP-3575
  • Number of poles：3
  • Current：125A
  • Voltage：230 V
  • Protection level：IP67
  • Function：Diagonal socket
  • Clock direction：6H
  • Pin material：Brass H59, nickel plated on the surface
